POLYPROPYLENE NEEDLEFETL 550 g/m2 (16 oz/yd2)
Description
A 80 °C (176 °F) continuous service temperature, polypropylene felt filter bag for use in pulse jet style dust collectors.
Features & Benefits
? Membrane technology provides an excellent combination of
filtration efficiency and dust cake release.
? Polypropylene fibers provide excellent acid and alkali resistance.
Applications
Food,
Flour,
Sugar,
Fertilizers,
Electroplating
& Pesticide etc
PRODUCT
DATA SHEET
STYLE PP550
POLYPROPYLENENEEDLEFETL
|
AREA WEIGHT |
EN12127 |
550 ±25g/m2 |
16.3±0.75 oz/yd2 |
DENSITY |
0.28 g/cm3 |
||||
|
THICKNESS |
EN ISO 9073/2 |
2.0 ±0.2mm |
0.079 ±0.004in |
|
|||||
|
COMPOSITION |
FIBER |
POLYPROPYLENE |
|||||||
|
SCRIM |
POLYPROPYLENE |
||||||||
|
FINISH |
HEAT-SET
TREATMENT (HYDRO-OIL REPELLENT, PTFE BATH) |
||||||||
|
|
LONGITUDINAL |
CROSS |
|||||||
|
TENSILE STRENGTH (5×20cm) |
GB/T 3923.1-2013 |
≥ 900N |
≥ 1200N |
||||||
|
ELONGATION |
GB/T 3923.1-2013 |
≤ 35 % |
≤50 % |
||||||
|
THERMAL STABILITY (SHRINKAGE) at 130℃ 24h |
GB/T 6719-2009 |
≤1.5% |
≤ 1 % |
||||||
|
AIR PERMEABILITY at 200Pa |
GB/T 5453 |
100-180 l/dm2 min |
|
||||||
|
|
|||||||||
|
FIBER PROPERTIES |
|
||||||||
|
OPERATING TEMPERATURE (Dry) |
CONTINUOUS |
80℃ Max 176℉ Max |
|||||||
|
PEAKS |
90℃ Max 194℉ Max |
||||||||
|
|
|||||||||
|
CHEMICAL RESISTANCE |
|||||||||
|
STRONG ACIDS **** |
STRONG ALKALIS **** |
SOLVENTS * |
|||||||
|
WEAK ACIDS **** |
WEAK ALKALIS **** |
OXIDIZING * HYDROLYSIS ** |
|||||||
|
LENGEND: ****
EXCELLENT *** GOOD ** FAIR * POOR |
|||||||||
* All data expressed as typical values. This technical data is subject to
change.

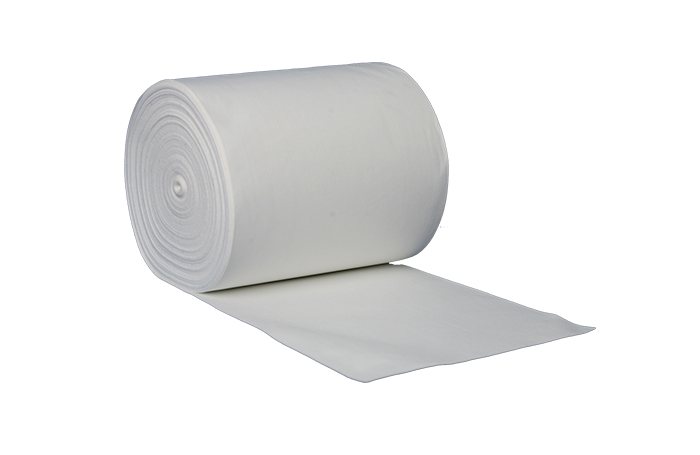

Filter media as roll goods
made of needle felt and glass fibre fabric
Filter media - provide the individual & tailored solution
? Varieties Material Choose
? Multi-layer Fiber Construction & Support Scrim
? Excellent Durability and Longer Life
? Mechanically High-strength
? Finished Treatment Performance
? Higher Efficiency
? Easy Cleaning
? Less Dust Emission
? Better Pressure Performance
? Resistance to Corrosive Flue Gas & Dust
? Glass fibre fabric with ePTFE membrane
? Working width up to 2.60 m
? Basis weight from 250 to 950 g/m2
? Innovative performance material can be used in numerous areas and fulfill various requirements
? Reliable and durable materiel from roll
